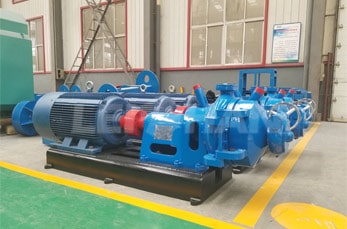

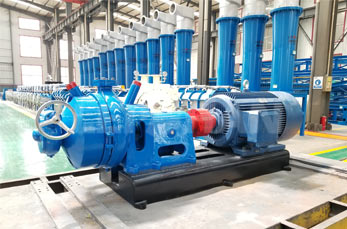

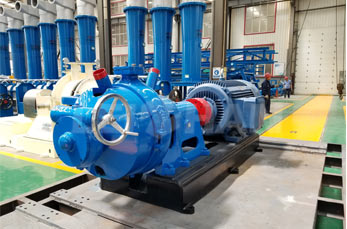

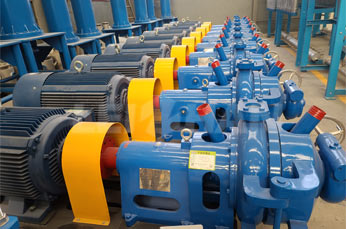

ZDP Series Double Disc Refiner

Features

1. It can be equipped with variety tooth refiner plate.

2. Suitable various raw materials like wood pulp, chemical pulp, mechanical pulp and waste paper pulp.

Technical Data

Type Φ380 Φ450
Diameter of Disc(mm) 380 450
Production Capacity(t/d) 6-20 8-60
Concentration of InputPulp(%) 2-5 3.5
Pressure of Input Pulp(Mpa) 0.1-0.2 0.15-0.2
Motor Power(Kw) 37-55 75-90-110

Services

serviceOffering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
