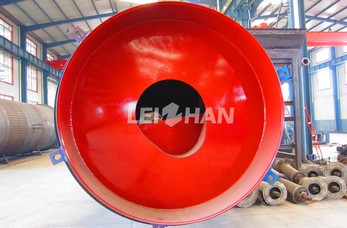

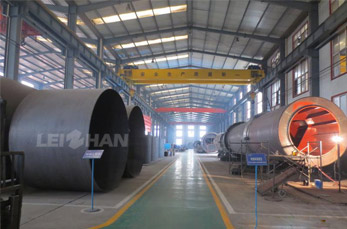

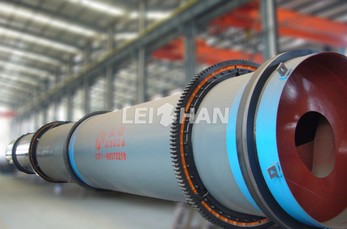

ZG Series Drum Pulper

ZG Series Drum Pulper
ZG Series Drum PulperZG Series Drum PulperZG Series Drum Pulper

ZG Series Drum Pulper

This type of Drum type hydrapulper is mainly used in the paper making industry to breaking continuously and coarse screening of the waste paper material under the high consistency.It can maximum keep the physical property of the fiber.

We’re here to help:

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051
+86-371-86138029
  • ZG Series Drum Pulper
  • ZG Series Drum Pulper
  • ZG Series Drum Pulper
  • ZG Series Drum Pulper
+86-371-55129198, +86-13783579051
+86-371-86138029

ZG Series Drum Pulper

Features

  • 1. Mainly used for continuous gentle pulping and coarse screening of waste paper under high consistency. Drum pulper can continuous pulp and preliminary screen, simple process.
  • 2. It can gently pulp under 14%-18% high consistency to uttermost maintain the physical property of fiber.
  • 3. Low damage to impurities and high efficiency of deslagging, which reduce the following equipment burden.
  • 4. Low energy consumption, reduce running cost, improve the competitiveness for per ton pulp.
  • 5. Long pulping residence time, sufficient fiber relief, low rate fine fiber loss.
  • 6. Few quick-wear parts, continuous pulping, low maintenance cost.

Technical Data

Type ZG2500 ZG2750 ZG3000 ZG3250 ZG3500 ZG3750 ZG4000 ZG4250
Drum Diameter (mm) Φ2500 Φ2750 Φ3000 Φ3250 Φ3500 Φ3750 Φ4000 Φ4250
Processing Capacity(t/d) 70-120 140-200 200-300 240-400 400-600 550-800 750-1000 1000-1400
Work capacity(%) 14-18
Motor  power(Kw) 132-160 160-200 280-315 315-400 560-630 630-800 800-1000 1000-1400

Working Principle

Drum pulper set pulping and coarse screening with a body, used for continuous pulping all kinds of waste paper( newspaper, industrial board paper, mixed waste paper, etc.), and coarse screening the paper pulp after pulping, reject treatment equipment.
Drum pulper interior division pre-soaking area, high consistency pulping area and screen area three industrial areas, waste paper raw material will from the conveyor into pre-soaking area first, after soaking, enter into the high consistency pulping area, with the rotation of the drum, the waste paper is took up by the lifting board on the inner wall, fall after rise to a certain height, and impact with the hard inner surface, so the waste paper in pulping area after repeated falls and strikes, under the mild pulping action of shear force and friction, was dissociated into single fiber, and the thin film,plastic, cloth and other impurities in the waste paper are not broken.
Then the pulp will enter into the screening area; On the above of screening area equipped with a flush water pipe, the pulp will washed and diluted once entered the screening area, the pulp consistency will down to 3-4%. The acceptable fiber through screen holes into the pulp chest, rough impurity is blocked by screen plate, stay in screening area and constantly elutriated, finally discharge from discharge mouth at the end of drum.

Services

servicesOffering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
