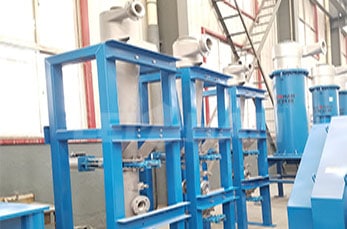

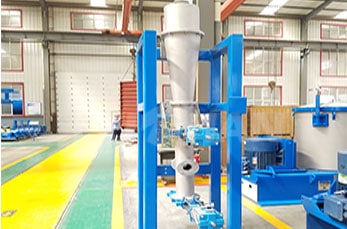

HD Series High Density Cleaner

HD Series High Density Cleaner

Mainly applied to remove all kinds of heavy impurities in paper pulp, like staples, stones, glasses,etc..

We’re here to help:

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051
+86-371-86138029
+86-371-55129198, +86-13783579051
+86-371-86138029

HD Series High Density Cleaner

Features

1. Volute Pulp inflow chamber, the eddy ability is strong and low pressure area subarea is obvious. This makes accepts and impurities separate thoroughly.
2. Wear resistance ceramics cone, long service life.
3. Specially designed long cone has small taper angle and fine cleaning efficiency.
4. Equipped with PLC control cabinet, convenient and easy to control, sufficiently discharging impurities.

Technical Data

Type HD2 HD3 HD4 HD5 HD6 HD7 HD8
Nominal Size 1000 1500 2000 3000 4000 5500 7500
Throughout(l/min) 800-1200 1200-1800 1800-2500 2500-3500 3500-4500 4500-6500 6500-8000
Concentration of input pulp(%)  2-5
Pressure of input pulp(Mpa) 0.3
Discharging Model AUTO

Working Principle

The pulp slurry should first disposed by high concentration deslagging machine after breaking. And this machine is a kind of high concentration pulp purification deslagging equipment, which purify pulp by separating the heavy impurities from the pulp according the difference on proportion of fiber and impurities.

Services

serviceOffering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.


.
