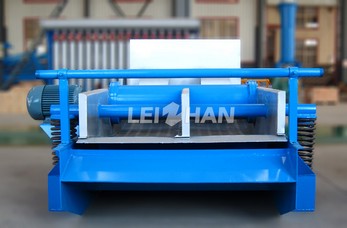

ZSK Series Auto-cleaning Vibrating Screen

Self-cleaning vibrating screen is developed by the reference of foreign equipment, the machine design is reasonable, screening capability is strong, with self-cleaning function, high efficiency, energy saving, low noise, easy maintenance, It is the domestic more advanced screening equipment.
It is mainly used for pulp tailings processing, with large filtering area, low power consumption and clean impurity.

We’re here to help:

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051
+86-371-86138029
  • Auto-cleaning Vibrating Screen
  • Auto-cleaning Vibrating Screen
  • Auto-cleaning Vibrating Screen
  • Auto-cleaning Vibrating Screen
+86-371-55129198, +86-13783579051
+86-371-86138029

ZSK Series Auto-cleaning Vibrating Screen

Features

  • 1. Used for screening and removing various impurities in pulp suspension.
  • 2. Specially designed air seal chamber makes self-cleaning ability of sieve plate very strong.
  • 3. Perfect screening effect, stable running, low noise, easy maintenance.

Technical Data

Type ZSK1 ZSK2 ZSK3
Area of Screen (m2) 1 2 3
Product Capacity of Hole screen (t/d) 7.5-25 12-50 25-75
Product Capacity of Gap Screen (t/d) 3.5-7.5 7-15 11-25
Input Pulp Concentration of Hole screen (%) 1.0-1.5
Input Pulp Concentration of  Gap Screen (%) 0.5-0.8
Motor power (Kw) 2.2 3 4

Working Principle

Its consisted of cleaner body, vibration producer, dampener, stock chest, stock level controlling device and water jet device etc.And the cleaner body is consisted of screen frame, screen plate and gas seal room which is connected by bolt. The screen frame is located on 4 dampeners, and vibration producer is located on the heart of screen frame.When the cleaner working, the stock run to the bottom of gas seal room by stock level controlling device, and the screen body is vibrated under the affect of vibration producer, then the pressure pulse is formed. This cleaning method by pressure pulse can not only make the screen plate more cleanly but decrease the load on the screen plate.
