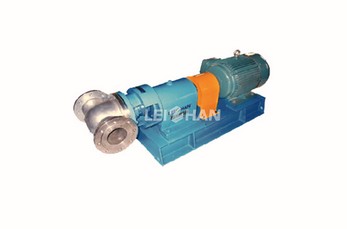

ZPH Series Mid Consistency Mixer

Features

  • 1. Mainly used in mid consistency bleaching section of stock preparation process, which fully mixes chemicals, steam and pulp.
  • 2. Adopt triple-blade rotor which helps in working efficiently. High Speed rotation of rotor makes stock fluidization and destroys fiber structure, so that reaches the best mixing result.
  • 3. Inner structure with spiral bar, avoiding stock detained in shell, reducing pressure losses.
  • 4. The rotation direction of rotor is perpendicular to the flow direction of stock, preventing bleaching agents from education and overflowing and saves chemicals.
  • 5. Directly connect after medium consistency pump, obviously energy saving.

Technical Data

Type Specification Proper Temperature( ℃) Consistency(%) WorkingPressure

(Mpa)

Processing Capacity (1000r/min) Processing Capacity (1500r/min) Motor Power(kw)
ZPH21 ɸ100 ≦120 8-14 ≦0.6 50-80 80-120 7.5-11
ZPH22 ɸ150 160-170 160-260 11-12
ZPH23 ɸ200 180-270 300-420 22-37
