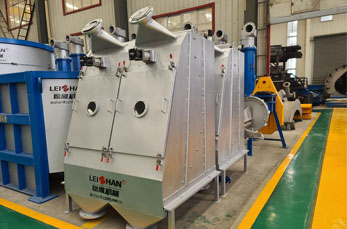

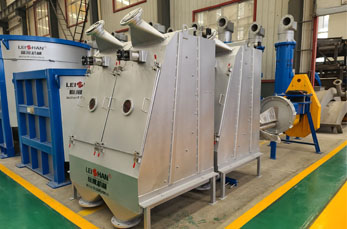

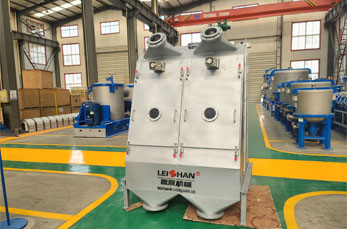

HXS Arc Screen

HXS Arc Screen

HXS Arc Screen is mainly used re mainly used to process white water in various pulping and papermaking processes to recover fibers, and to screen and concentrate slurry and tailings pulp in cleaning systems.

We’re here to help:

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051

+86-371-55129198, +86-13783579051

HXS Arc Screen


  • 1. White water purification:
  • (1) White water purification of paper machine is used for spray water.
  • (2) Purification and reuse of press water of paper machine.
  • 2. Fiber fractionating:
  • (1) Fractionating of long and short fibers.
  • (2) Separation of large fiber bundles.
  • 3. Separation of fiber and filler:
  • (1) Washing the deinking pulp.
  • (2) Washing the coated broken pulp.
  • 4. Sewage treatment: remove solid suspended solids.

Technical Data

Type  HXS1  HXS2  HXS3
Area(m²) 1.26 2.52 3.78
Inlet Pulp pressure(Mpa) 0.15-0.25
Inlet pulp concentration (%) ≤2.5
Throughput(thicken pulp): m³/h 108-180 216-360 324-540
Screen slot(thicken pulp): mm 0.15-0.3
Screen slot(white water recovery): mm 0.05-0.2

servicesOffering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
