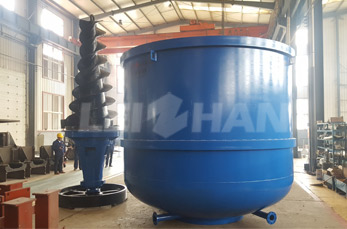

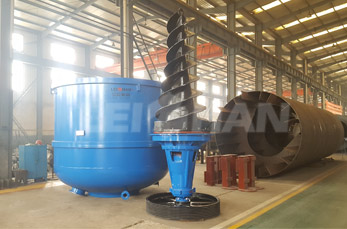

ZDSG Series High Consistency Pulper

Features

  • 1.Mainly used for separating waste paper and ink under high consistency in waste paper deinking process.
  • 2.Special spiral rotor effectively promote the circulation and rollover of pulp, reinforce friction between fibers. Finally achieve gentle pulp under high consistency, impurities will not be broke in the process of fiber relief and deinking,
  • 3.Dealing with 12%-18% high consistency pulp, effective chemical mixture and friction between fibers under high consistency make the ink particle separate from the surface of fiber fully.
  • 4.Compact structure, convenient operation and maintenance.

Technical Data

Type ZDSG5 ZDSG10 ZDSG15 ZDSG20 ZDSG25 ZDSG30 ZDSG35
Volume(m3) 5 10 15 20 25 30 35
Consistency(%) 10-15
Processing Capacity(t/d) 20-25 40-50 60-70 80-100 130-185 160-225 185-260
Motor power(Kw) 110 220 310 400 450 500 560

Working Principle

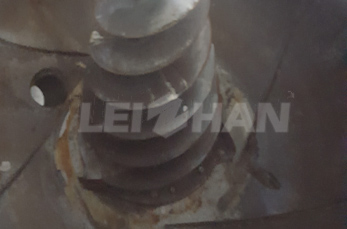

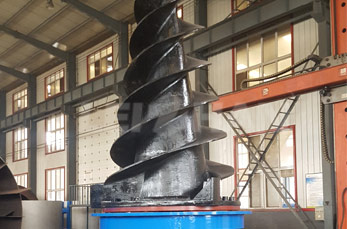

ZDSG high consistency Hydrapulper is designed with the principle of hydraulic whirlpool. The rotors are structure that double-headed screw combination with knife. when the rotor rotates, the high concentration slurry do radial circular motion, make waste paper hydration and defibering accelerate.
During the work, the waste paper are always in a high concentration to defibering, thus contributing to the friction between the fibers, to make the ink ion with chemical additives and fiber separation easily, to achieve the purposes to recycling.
In addition, the impeller of rotor are oblique spirochete, the shear effect is weak, only divestitures the impurity in the waste paper, and it will not form of small flakes, so it create favorable conditions for pulp screening.
The structural design of novel pulping at high concentrations, has the characteristics of water-saving, energy saving, small footprint, is ideal equipment for waste paper recycling.
