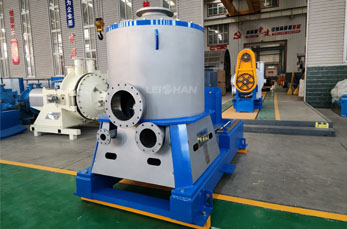

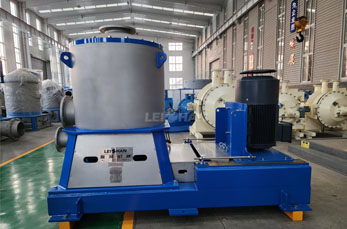

XZNS Series New Mid-Consistency Pressure Screen

XZNS Series New Mid-Consistency Pressure Screen

XZNS Series New Mid-Consistency Pressure Screen is mainly used to remove heavy impurities by gravity, reduce wear on the rotor and screen basket, and prolong the service life.

We’re here to help:

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051

+86-371-55129198, +86-13783579051

XZNS Series New Mid-Consistency Pressure Screen


  • 1. Improve the screening efficiency, better removal of stickies.
  • 2. Significantly reduce energy consumption, energy saving up to 25%.
  • 3. Further optimization of screen basket size, stronger adaptability, lower thickening coefficient, can effectively reduce fiber loss and reduce the possibility of clogging..
  • 4. Easier maintenance and less unplanned downtime.

Technical Data

Model XZNS0.5 XZNS0.9 XZNS1.5 XZNS2.3 XZNS3.5 XZNS4.7
Norminal are(㎡) 0.5 0.88 1.49 2.3 3.53 XZNS4.67
Screen hole size(mm) Φ1.6-Φ3.5
Screen slot size(mm) 0.1-0.65

Production capacity(T/D)

Coarse screen 90-160 135-250 200-380 260-500 400-700 500-1000
Fine screen 20-100 30-150 50-230 70-300 100-450


Inlet consistency (%) 1-4
Motor Power(kw) 11-45 22-75 30-110 45-160 55-250 90-355
