JNS Series Energy-Saving Pressure Screen is mainly used coarse screen in paper pulp processing line. Its unique design can reduce heavy impurities and rotor and screen basket contact, prolong the life of the equipment.
Products

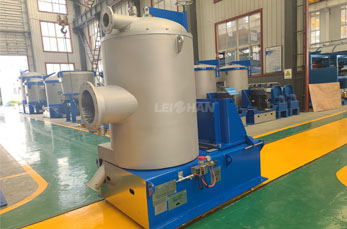

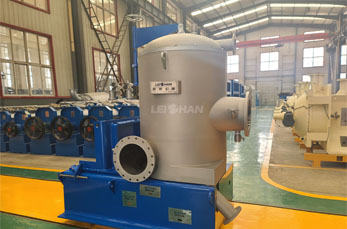

JNS Series Energy-Saving Pressure Screen
| Model | 0.9 | 1.5 | 2 | 3 | 4 | ||
| Screen area（m2） | 1.07 | 1.81 | 2.26 | 3.28 | 4.0 | ||
| Hole size (mm) | Ф1.6-3.5Ф | ||||||
| Slot size (mm) | 0.10-0.65 | ||||||
| Inlet consistency(%) | 1-4 | ||||||
| Production Capacity(t/d) | 180-220 | 220-360 | 300-450 | 440-660 | 600-800 | ||
| Motor Power(kw) | 37-55 | 55-75 | 75-90 | 90-110 | 110-460 | ||
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
