JB Series Agitator

Used to stir pulp cyclically in square chest to maintain the pulp liquid in suspending condition, which ensures the pulp components even distribution, and it is good for fully reaction of chemical liquid.

We’re here to help:

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051

leizhanmachine@gmail.com

+86-371-86138029

+86-371-55129198, +86-13783579051

leizhanmachine@gmail.com

+86-371-86138029

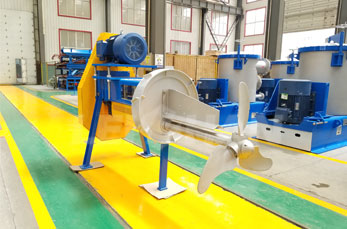

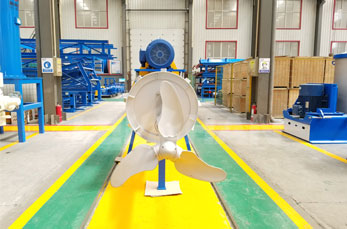

JB Series Pulp Chest Agitator

Features

1. Mainly used to stir pulp cyclically in chest to maintain the pulp liquid in suspending condition, which ensure the pulp components even distribution.

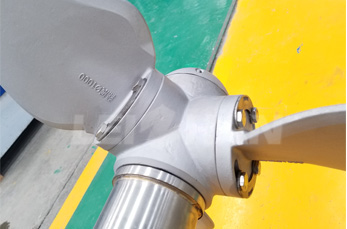

2. Advanced blade design, strong thrust. It can be adjusted the angle according to the concentration of the slurry.

Technical Data

Model	JB500	JB600	JB700	JB750	JB850	JB1000
Vane Diameter(mm)	ɸ500	ɸ600	ɸ700	ɸ750	ɸ750	ɸ1000
Consistency(%)	≦5
Chest Volume(m3)	20-50	30-60	35-70	40-75	50-85	70-110
Motor Power(kw)	5.5/7.5	5.5/7.5/11	7.5/11/15	11/15/18.5	15/18.5/22/30	15/18.5/22/30

Technical Data

Model	JB1150	JB1250	JB1350	JB1500	JB1800
Vane Diameter(mm)	ɸ1150	ɸ1250	ɸ1350	ɸ1500	ɸ1800
Consistency(%)	≦5
Chest Volume(m3)	80-120	90-140	100-150	120-180	150-230
Motor Power(kw)	18.5/22/30	22/30/37	30/37/45	37/45/55	45/55/75

Work Principle

JB series pulp chest agitator is used for stir pulp in pulp chest and keep the pulp liquid in suspending condition. The angle of the impeller is adjustable according to the pulp concentration in pulp chest.

Services

service Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
