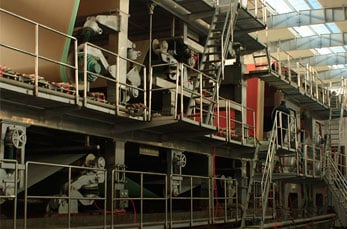

3000mm double wire fluting paper machine is mainly used for making 100-200g/㎡ fluting paper, etc. Final paper products are paper roll. 3000mm double wire fluting paper machine consists of a forming section, press section, dryer section, sizing machine, reel section, drive system, foundation, hood, electrical control system, lubrication system, compressed air system, and a tail-threading rope system.
Main products: Fluting paper, etc.
Raw material: Waste paper
Basis weight range: 100–200g/m²
Trimmed paper width: 3000mm
Production capacity: 70t/d
Operating speed: 120–180m/min
Design speed: 220m/min
Crawl speed: 30m/min
Dynamic balancing speed: 350m/min
Wire width: 3500mm
Headbox slice width: 3350mm
Gauge: 3600mm
Leizhan offer complete fluting paper production line machine and turnkey project. Welcome to consult us for more details about 3000mm double wire fluting paper machine. Email address: leizhanmachine@gmail.com.
This line includes Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper (such as waste packing box,waste office paper and so on) turn to fine pulp for paper forming on the paper machine.
Supply the most current design and technical expertise; Supply parts sales and training service far beyond the initial sale; Your profits with quality parts and expert service.
You can get the price list and a Leizhan representative will contact you within one business day.
