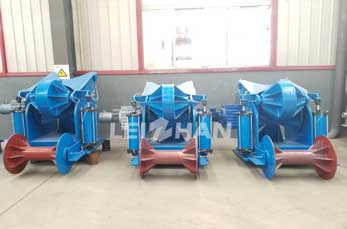

Ragger in pulping line is usually used in conjunction with continuous disintegration equipment such as hydraulic pulpers, so that impurities contained in waste paper such as iron wire, string, plastic, cotton yarn, etc, continuously rotated and entangled during the operation of the hydraulic pulper to form a strand rope that is continuously pulled out and discharged, so that the pulp is initially purified. The ragger in pulping line has the advantages of high working efficiency, low power consumption, simple structure, and easy operation and maintenance.

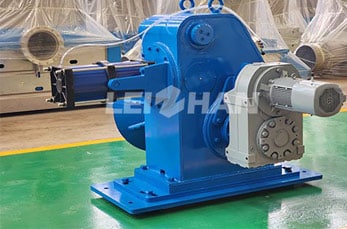

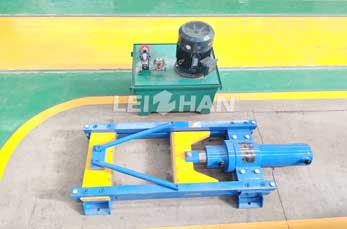

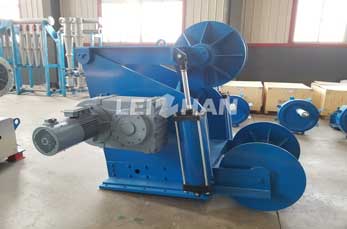

The ragger is composed of a frame, a motor, a reducer, a transmission chain, an upper pressure roller and a lifting device, a capstan, a hanging wheel and a guide roller. The motor drives the capstan to rotate slowly through the transmission chain via the reducer, and the impurities in the hydraulic pulper form strands that are continuously pulled out. The running speed and direction of the strands can be adjusted according to the process requirements. The upper pressure roller presses the strands tightly, and its pressure can be adjusted through the lifting device. The guide roller supports the strands and reduces the running resistance of the strands. The ragger is integrated into one unit with a simple and compact structure.
High efficiency ragger in pulping line for sale. Consult us for more details. Email address: leizhanmachine@gmail.com.
This line includes Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper (such as waste packing box,waste office paper and so on) turn to fine pulp for paper forming on the paper machine.
Supply the most current design and technical expertise; Supply parts sales and training service far beyond the initial sale; Your profits with quality parts and expert service.
You can get the price list and a Leizhan representative will contact you within one business day.
